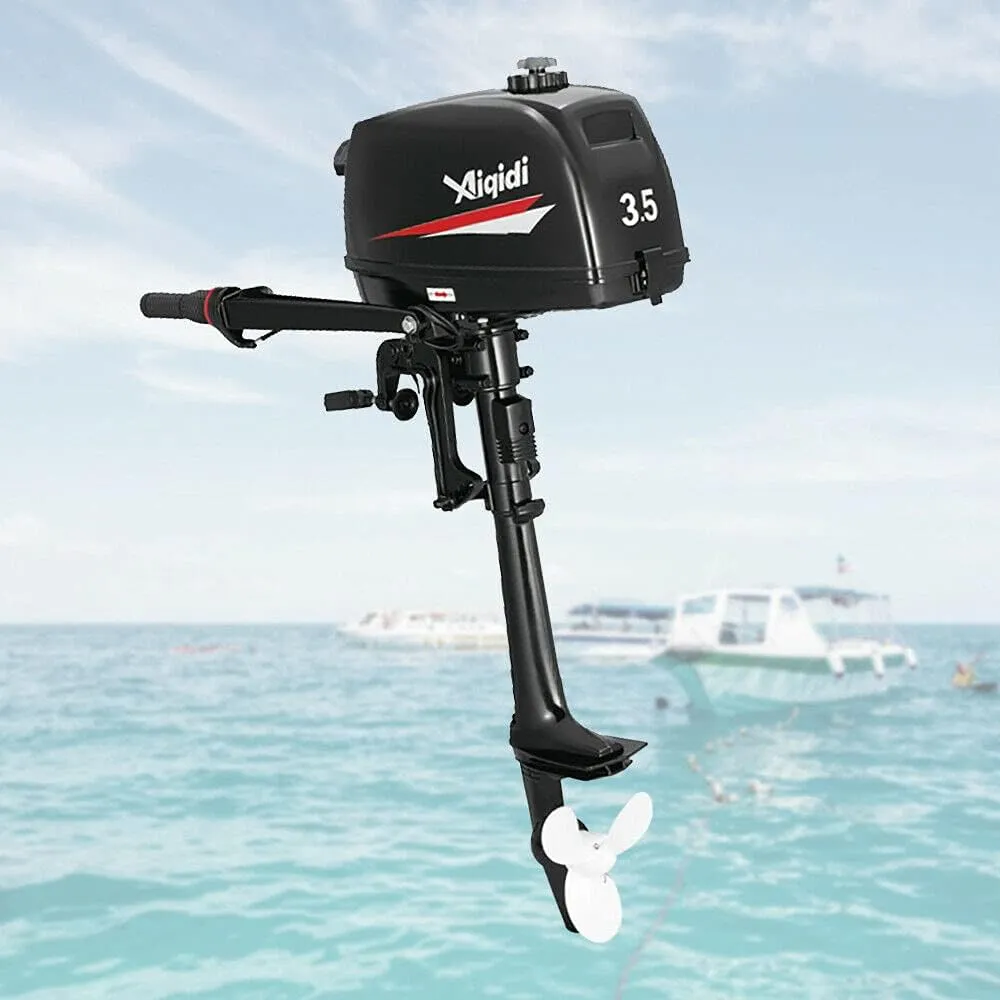

- 💧[WIDE APPLICATION] This outboard is not only suitable for all kinds of small boats of 2.7~8 meters, such as inflatable boats, fishing boats, rubber boats, sailboats, small yachts and small water vehicles, canoes and aluminum fishing boats. Also suitable for fishing, aquaculture, water sports, water tourism, outdoor adventure and other purposes.
- 💧[EASY OPERATION] This two-stroke 3.5-horsepower outboard motor has no neutral gear and can be adjusted for either high or low speed. There are 2 speeds that can be adjusted, which can adapt to different work requirements. It also has a 180-degree steering function, allowing you to easily control the steering of the boat, making it more convenient to use. A full refill can make the boat run at high speed for about 1 hour, and the working time is excellent.
- 💧[PREMIUM MATERIAL] This premium outboard motor is constructed of durable steel and aluminum for excellent corrosion resistance and longer life. It also comes with a standard premium cast aluminium propeller so it can be used for extended periods of time in both fresh and salt water. The outboard motor is designed with an excellent air cooling system, which can dissipate heat in time, which can prolong its service life.
- 💧[SPECIFICATIONS] Full throttle perating range:4000-5000r/min. Maximum Output: 2.5kw. Idling Speed:1150±50r/Min. Engine Type:2 Stroke. Displacement:60.4cm3. Bore X Stroke:45.0x38.0mm. Ignition System:cdi. Spark Plug Gap:0.6-0.7mm(0.024-0.028inch). Control System:tiller. Starting System:manual. Starting Carburetor System:choke Valve. Recommended Fuel:regular Unleaded Gasoline. Fuel Tank Capacity:1.3L. Recommended Engine Oil:2 Stroke Outboard Motor Oil. Fuel and Oil Ratio: 50:1.
- 💧[QUALITY ASSURANCE] We have strict quality control system, our products are put into the market after rigorous testing. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
Technical Parameters and Specifications
Dimension:
Overall Length:610mm(24inch)
Overall Width:240mm(9.4inch)
Overall Height :916mm(36.1inch)
Transom Height:417mm(16.4inch)
Performance:
Full Throttle Operating Range:4500-5000 R/Min
Maximum Output:2.5kw@4500r/Min
T3.5 3.5hp@4500r/Min
Idling Speed:1150±50r/Min
Engine:
Type:2 Stroke S
Displacement:60.4cm3
Bore X Stroke:45.0x38.0mm
Ignition System:cdi
Spark Plug:e5rtc
Spark Plug Gap:0.6-0.7mm(0.024-0.028inch)
Control System:tiller
Starting System:manual
Starting Carburetor System:choke Valve
Drive Unit:
Gear Positions:forward
Gear Ratio:2.08(27/13)
Trim and Tilt System:manual Tilt
Propeller Mark:a
Fuel and Oil:
Recommended Fuel:regular Unleaded Gasoline
Fuel Tank Capacity:1.3l
Recommended Engine Oil:2 Stroke Outboard Motor Oil
Fuel and Oil Ratio:
Regular Gasoline:50:1
Lubrication :Pre-mixed Fuel and Oil
Recommended Gear Oil:hypoid Gear Oil Sae#90
Gear Oil Quantity:0.045l(0.048 Us Qt,0.040imp.qt)
Tightening Torque for Engine:
Spark Plug:2.5nm(2.55kgf-m,18.4ft-lb)
Net Weight: 12.5kgs
Packing List:
Machine Tool Bag Proportioning Pot Manual
